Granite Dolomite Impact Crusher Mobile Station for Mobile Stone Crusher Plant
Basic information
Introduction

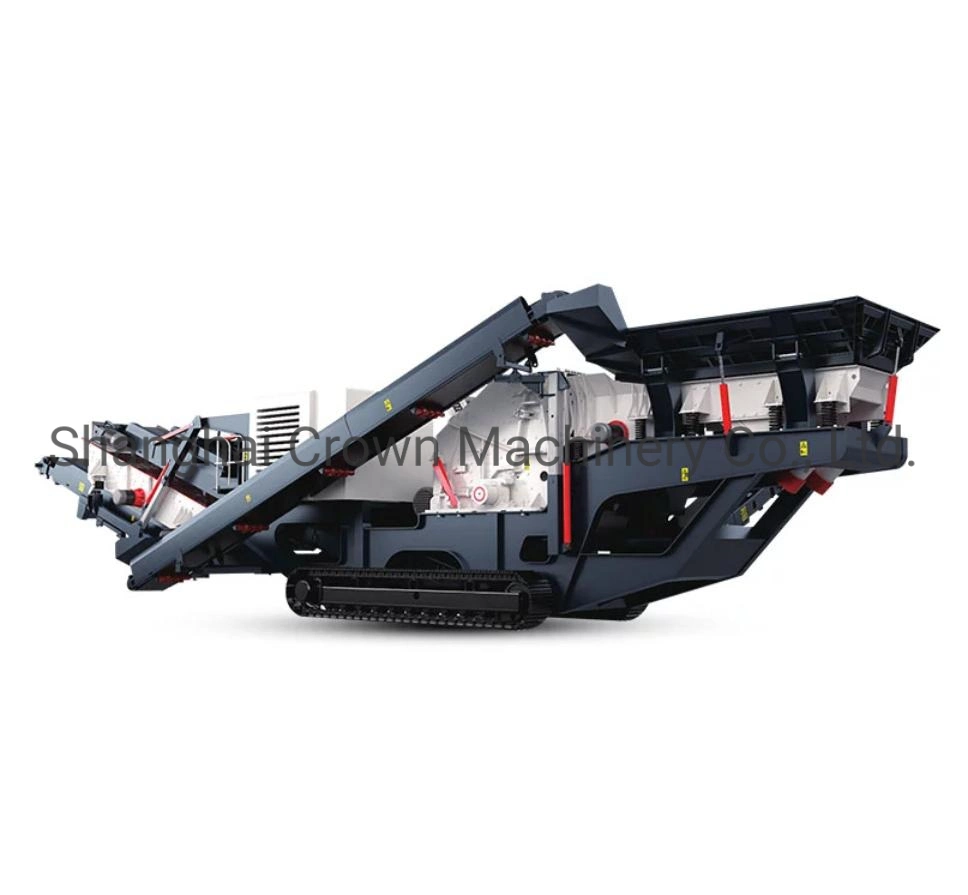

Crawler type impact crusher station are renown for their versatility and capabilities in the reduction and sizing of soft to medium natural granite and limestone and non-abrasive materials as well as recycling construction demolition waste.
Application fields
This machine is a latest rock crushing equipment crushing, which is mainly used in the fields of metallurgy, chemistry, construction materials, hydroelectric power and so on.
Feeding Size:≤350mm
Outlet adjustment range:12-50mm
Technical Data
Our Client's site and Flow Chart
Basic information
| Applicable industry | Building,construction,road… | Condition | new |
| type | Crawler jaw crusher | Capacity | 50-500tph |
| warranty | 1year | Weight | Based on model |
| function | Feeding and primary crusher | driven | motor& diesel |
| Color | customized | Origin | China |
Introduction
Crawler type impact crusher station are renown for their versatility and capabilities in the reduction and sizing of soft to medium natural granite and limestone and non-abrasive materials as well as recycling construction demolition waste.
Application fields
This machine is a latest rock crushing equipment crushing, which is mainly used in the fields of metallurgy, chemistry, construction materials, hydroelectric power and so on.
Feeding Size:≤350mm
Outlet adjustment range:12-50mm
Features
1. Feeding guard adopts hierarchical type with two layers structure which provides prerequisites for widening.
2. It adopts ship form steel structure and low vehicle chassis with light weight.
3. Feeding guard is lifted by hydraulic pressure, easy to be loaded and unloaded, conveniently and reliably to be fixed.
4. Optimized steel frame structure design, compact and reasonable structure, modular assembly structure, small turning radius, convenient transportation
5.Folding feed bin, hydraulic support guard plate, simple and reliable operation
6.Control cabinet can be equipped with LCD touch control screen, PLC control system
7.Conveyor angle can be adjusted, can be flipped and folded
8.Outrigger can be hydraulically lifted, flexible and convenient operation
1. Feeding guard adopts hierarchical type with two layers structure which provides prerequisites for widening.
2. It adopts ship form steel structure and low vehicle chassis with light weight.
3. Feeding guard is lifted by hydraulic pressure, easy to be loaded and unloaded, conveniently and reliably to be fixed.
4. Optimized steel frame structure design, compact and reasonable structure, modular assembly structure, small turning radius, convenient transportation
5.Folding feed bin, hydraulic support guard plate, simple and reliable operation
6.Control cabinet can be equipped with LCD touch control screen, PLC control system
7.Conveyor angle can be adjusted, can be flipped and folded
8.Outrigger can be hydraulically lifted, flexible and convenient operation
Technical Data
| Model | YGI-110 | YGI-110S | YGI-1213 | YGI-1213S | YGI-1315 | |
| Dimensions of Transmission Devices | Length | 14000mm | 16000mm | 15500mm | 19000mm | 17000mm |
| Width | 3000mm | 3200mm | 3200mm | 3600mm | 3200mm | |
| Height | 3600mm | 3600mm | 3800mm | 3800mm | 3800mm | |
| Weight | 40t | 45t | 53t | 60t | 65t | |
| Feeder | Hopper Volume | 3m³ | 3m³ | 5m³ | 5m³ | 5m³ |
| Loading Height | 3900mm | 4000mm | 3900mm | 4100mm | 4000mm | |
| Primary Screen | Power | 5.2kw | 5.2kw | 6.12kw | 6.12kw | 6.12kw |
| Sieve Dimensions | 1040×924mm | 1040×924mm | 1140×924mm | 1140×924mm | 1240×930mm | |
| Crusher | Model | CI1110M | CI1110M | CI1213M | CI1213M | CI1315M |
| Inlet Dimensions | 1020×860mm | 1020×860mm | 1320×900mm | 1320×900mm | 1540×900mm | |
| Max.Feeding Size | 400mm | 400mm | 500mm | 500mm | 600mm | |
| The Feeder at the Bottom | Hopper Volume | 0.8m³ | 0.8m³ | 1m³ | 1m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | 5.2kw | 5.2kw | 6.12kw | |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 650×3500mm | 650×3500mm | 650×3500mm | 650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | 2200mm | 2200mm | 2400mm | |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×8500mm | 1000×8500mm | 1000×9900mm | 1000×9900mm | 1200×11000mm |
| Dumping Height | 3300mm | 3300mm | 3500mm | 3500mm | 3800mm | |
| Secondary Screen | Power | ○ | 6.12kw | ○ | 6.12kw | ○ |
| Sieve Dimensions | ○ | 1500×3600 | ○ | 1500×4200 | ○ | |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | ○ | 1000×5800mm | ○ | 1000×6200mm | ○ |
| Dumping Height | ○ | 2900mm | ○ | 3000mm | ○ | |
| Transferring Belt Conveyor | Dimensions(Width×Length) | ○ | 650×2500mm | ○ | 650×2800mm | ○ |
| Dumping Height | ○ | 1400mm | ○ | 1400mm | ○ | |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | ○ | 500×8000mm | ○ | 500×9200mm | ○ |
| Dumping Height | ○ | 4200mm | ○ | 4500mm | ○ | |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 | RCYQ-10 | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 106kw | 106kw | 132kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 253kw | 274kw | 304kw | 324.4kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | |
